Inductores fijos
| Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Tipo | Material - Núcleo | Inductancia | Tolerancia | Clasificación de corriente (amperios) | Corriente - Saturación (Isat) | Blindaje | Resistencia de CC (DCR) | Q a frecuencia | Frecuencia: autorresonante | Clasificaciones | Temperatura de funcionamiento | Frecuencia de inductancia - Prueba | Características | Tipo de montaje | Proveedor Dispositivo Paquete | Tamaño/Dimensión | Altura - Asentado (Máx.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSBX0650-6R8MSMD HIGH CURRENT POWER INDUCTOR CODACA |
877 |
|
Tabla de datos |
CSBX0650 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 6.8 µH | ±20% | 6 A | 10.3A | Shielded | 23.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | High Saturation | Surface Mount | - | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.197" (5.00mm) |
|

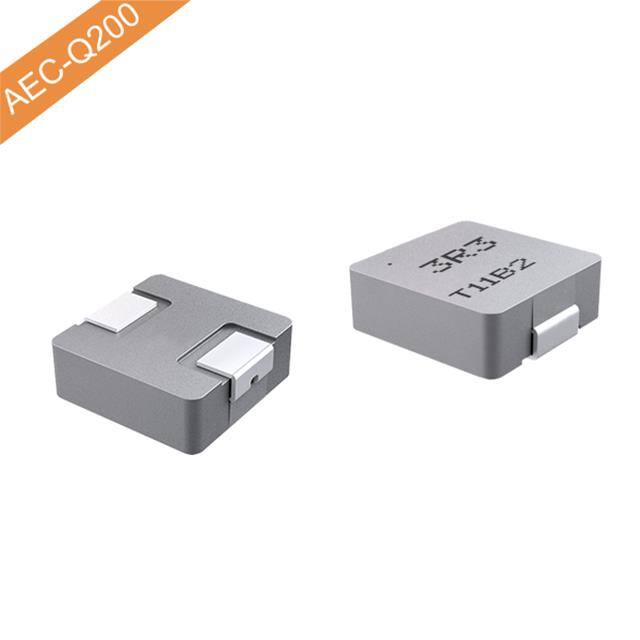

CSAB1250A-1R0MSMD MOLDING POWER CHOKE CODACA |
500 |
|
Tabla de datos |
CSAB1250A | 2-SMD | Tape & Reel (TR) | Active | Molded | Alloy Powder | 1 µH | ±20% | 25.5 A | 37A | Shielded | 2.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low DCR, Low Loss | Surface Mount | 2-SMD | 0.543" L x 0.496" W (13.80mm x 12.60mm) | 0.197" (5.00mm) |
|

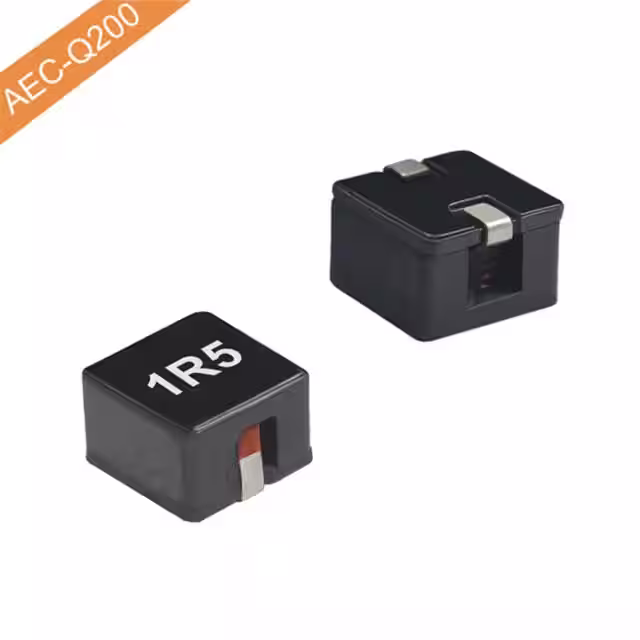

CSBL0650-R25MSMD HIGH CURRENT POWER INDUCTOR CODACA |
497 |
|
Tabla de datos |
CSBL0650 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 250 nH | ±20% | 21 A | 35A | Shielded | 1mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.197" (5.00mm) |
|
|
CSBL0650-1R0MSMD HIGH CURRENT POWER INDUCTOR CODACA |
455 |
|
Tabla de datos |
CSBL0650 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 1 µH | ±20% | 15 A | 21A | Shielded | 4.1mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.197" (5.00mm) |
|
|
CSBL0650-6R8MSMD HIGH CURRENT POWER INDUCTOR CODACA |
408 |
|
Tabla de datos |
CSBL0650 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Metal Composite | 6.8 µH | ±20% | 6 A | 7.8A | Shielded | 23.6mOhm Max | - | - | AEC-Q200 | -50°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.197" (5.00mm) |
|
CSAB1250A-R47MSMD MOLDING POWER CHOKE CODACA |
291 |
|
Tabla de datos |
CSAB1250A | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 470 nH | ±20% | 35 A | 50A | Shielded | 1.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.543" L x 0.496" W (13.80mm x 12.60mm) | 0.197" (5.00mm) |
|

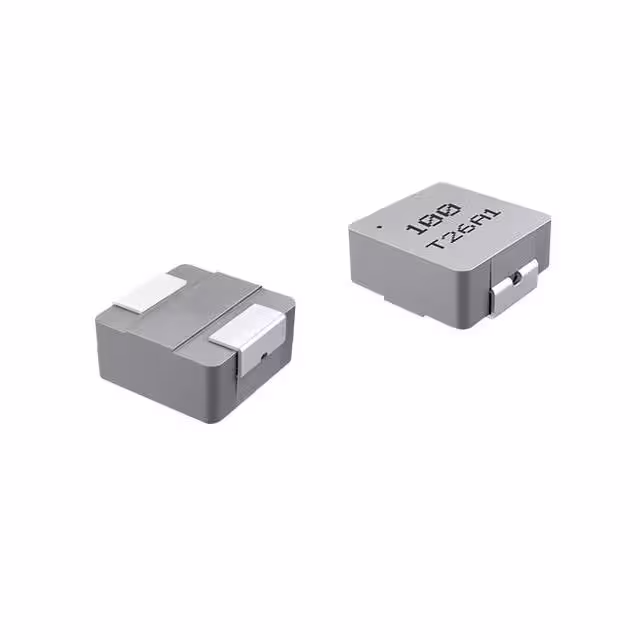

CSHB0530R-6R8MSMD MOLDING POWER CHOKE CODACA |
1,965 |
|
Tabla de datos |
CSHB0530R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 6.8 µH | ±20% | 5 A | 5.5A | Shielded | 58mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.118" (3.00mm) |
|

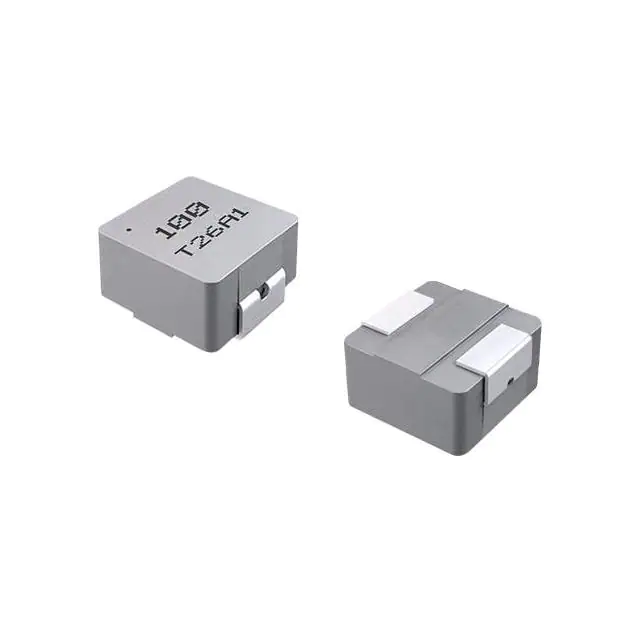

CSHB0540R-5R6MSMD MOLDING POWER CHOKE CODACA |
1,502 |
|
Tabla de datos |
CSHB0540R | Nonstandard | Tape & Reel (TR) | Active | Molded | Magnetic Powder | 5.6 µH | ±20% | 6 A | 6.5A | Shielded | 33.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.157" (4.00mm) |
|
|
CSHB0540R-2R2MSMD MOLDING POWER CHOKE CODACA |
1,481 |
|
Tabla de datos |
CSHB0540R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 2.2 µH | ±20% | 10 A | 10.5A | Shielded | 18.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.157" (4.00mm) |
|
|
CSHB0540R-3R3MSMD MOLDING POWER CHOKE CODACA |
1,480 |
|
Tabla de datos |
CSHB0540R | Nonstandard | Cut Tape (CT) | Active | Molded | Magnetic Powder | 3.3 µH | ±20% | 8.5 A | 9A | Shielded | 24mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.157" (4.00mm) |
