Foto | N.º de Parte del Fabricante | Disponibilidad | Cantidad | Hoja de Datos | Serie | Paquete/Caja | Embalaje | Estado del producto | Voltaje - Estado apagado | Voltaje - Disparador de compuerta (Vgt) (máx.) | Corriente - Disparador de compuerta (Igt) (máx.) | Voltaje - Estado encendido (Vtm) (máx.) | Corriente - Estado encendido (It (AV)) (máx.) | Corriente - Estado encendido (It (RMS)) (máx.) | Corriente: retención (Ih) (Máx.) | Corriente - Estado apagado (máx.) | Corriente - Sobretensión no repetitiva de 50, 60 Hz (Itsm) | Tipo de SCR | Temperatura de funcionamiento | Grado | Calificación | Tipo de montaje | Proveedor Dispositivo Paquete |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CS20-14IO1SCR 1.4KV 30A TO247AD IXYS |
183 |
|
![]() Tabla de datos |
- | TO-247-3 | Tube | Active | 1.4 kV | 1 V | 65 mA | 2.1 V | 19 A | 30 A | 100 mA | 2 mA | 200A, 215A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-247AD |
|
CS20-16IO1SCR 1.6KV 30A TO247AD IXYS |
245 |
|
![]() Tabla de datos |
- | TO-247-3 | Tube | Active | 1.6 kV | 1 V | 65 mA | 2.1 V | 19 A | 30 A | 100 mA | 2 mA | 200A, 215A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-247AD |
![]() |
CS45-12IO1SCR 1.2KV 75A PLUS247-3 IXYS |
265 |
|
![]() Tabla de datos |
- | TO-247-3 Variant | Tube | Active | 1.2 kV | 1.5 V | 100 mA | 1.64 V | 48 A | 75 A | 100 mA | 5 mA | 520A, 560A | Standard Recovery | -40°C ~ 140°C | - | - | Through Hole | PLUS247™-3 |
![]() |

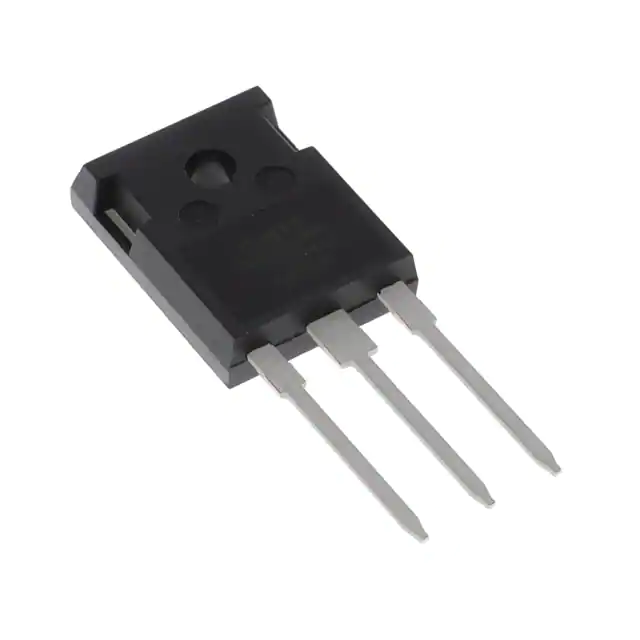

CMA50E1600HBSCR 1.6KV 79A TO247 IXYS |
214 |
|
![]() Tabla de datos |
CMA50E1600HB | TO-247-3 | Tube | Active | 1.6 kV | 1.5 V | 50 mA | 1.3 V | 50 A | 79 A | 100 mA | - | 550A, 595A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
![]() |
CMA80E1600HBSCR 1.6KV 126A TO247 IXYS |
198 |
|
![]() Tabla de datos |
CMA80E1600HB | TO-247-3 | Tube | Active | 1.6 kV | 1.4 V | 80 mA | 1.47 V | 80 A | 126 A | 100 mA | - | 720A, 780A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
SV6050NA2RPAEC-Q GRADE 50 AMP STANDARD HIGH IXYS |
562 |
|
![]() Tabla de datos |
SVxx50xAx | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 600 V | 1.3 V | 15 mA | 1.6 V | 31.5 A | 50 A | 50 mA | 5 µA | 456A, 550A | Sensitive Gate | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263 (D2PAK) |
![]() |
CLA50E1200TC-TRLSCR 1.2KV 79A TO268AA IXYS |
1,463 |
|
![]() Tabla de datos |
- | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tape & Reel (TR) | Active | 1.2 kV | 1.5 V | 50 mA | 1.6 V | 50 A | 79 A | 75 mA | 50 µA | 550A, 595A | Standard Recovery | -40°C ~ 150°C | - | - | Surface Mount | TO-268AA |
![]() |
SRU6008DS2RP8 Amp High Temperature Sensitive IXYS |
2,500 |
|
- |
SRU6008xSx | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 800 V | 800 mV | 200 µA | 1.6 V | 5.1 A | 8 A | 6 mA | 5 µA | 83A, 100A | Sensitive Gate | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA |
![]() |
SJ8025LTP25 Amp High Temperature IXYS |
1,000 |
|
- |
SJxx25xx | TO-220-3 Isolated Tab | Tube | Active | 800 V | 1.5 V | 35 mA | 1.6 V | 16 A | 25 A | 75 mA | 10 µA | 300A, 350A | Sensitive Gate | -40°C ~ 150°C (TJ) | - | - | Through Hole | ITO-220AB |
![]() |
CLA100E1200HBSCR 1.2KV 160A TO247 IXYS |
47 |
|
![]() Tabla de datos |
CLA100E1200HB | TO-247-3 | Tube | Active | 1.2 kV | 1.5 V | 40 mA | 1.37 V | 100 A | 160 A | 100 mA | - | 1100A, 11900A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
